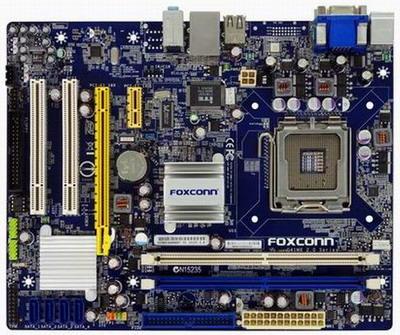

FOXCONN - Intel G41(G41MX-F) Trung Tâm Xử Lý Máy Tính Tận Nơi, Bảo Trì Máy Tính Chuyên Nghiệp, Lắp đặt hệ thống camera, tổng đài điện thoại, hệ thống mạng, wifi, hệ thống quan sát, hệ thống chống chộm, thiết bị văn phòng...

Processor:

Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core processors, Socket T (LGA775)
Supports Intel® 45nm Multi-Core processors

Chipset:

Intel® G41 + ICH7

Front Side Bus:

1333/1066/800 MHz (FSB)

Memory:

Dual channel DDR2 800/667 x 2 DIMMs, Max 8GB

VGA:

Integrated

Expansion Slots:

1* PCIe x16, 1* PCIe x1, 2* PCI

IDE:

1*ATA100

Serial ATA(SATA)/RAID:

4* SATAII

Audio:

5.1 channel by Realtek® ALC662

LAN:

Gigabit LAN by Realtek® 8111DL

Back Panel I/O Ports:

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
1 x Serial port
1 x Audio jack supports 6 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port

Internal I/O Connectors:

1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x CD-in connector
1 x IDE connector
1 x Floppy connector
1 x Front Panel connector
2 x USB 2.0 connectors support additional 4 ports
4 x Serial ATAII connectors
1 x S/PDIF Out header
1 x Speaker header
1 x Front Audio header
1 x IrDA header
1 x TPM header
