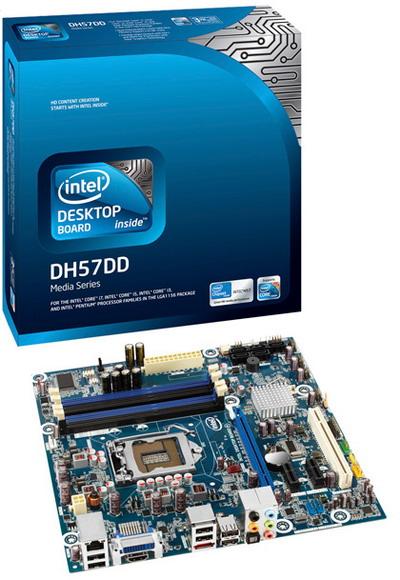

INTEL - Intel H57 (DH57DD) - Box/ Tray Trung Tâm Xử Lý Máy Tính Tận Nơi, Bảo Trì Máy Tính Chuyên Nghiệp, Lắp đặt hệ thống camera, tổng đài điện thoại, hệ thống mạng, wifi, hệ thống quan sát, hệ thống chống chộm, thiết bị văn phòng...

Processor

At product launch, this desktop board supports:

Intel® Core™ i7 processors in an LGA1156 socket

Intel® Core™ i5 processors in an LGA1156 socket

Intel® Core™ i3 processors in an LGA1156 socket

Intel® Pentium® processors in an LGA1156 socket

View all compatible Intel® processor numbers

Memory

Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for DDR3 1333/1066 MHz DIMMs

Support for up to 16 GBΣ of system memory

Chipset

Intel® H57 Express Chipset

Audio

Intel® High Definition Audio◊ subsystem in the following configuration:

10-channel (7.1+ 2 independent multi-streaming) audio subsystem with five analog audio outputs and optical S/PDIF out using the Realtek* ALC889 audio codec

LAN support

Intel® PRO 10/100/1000 Network Connection using the Intel® 82578DC Gigabit Ethernet Controller

Peripheral interfaces

Up to fourteen USB 2.0 ports

Six Serial ATA 3.0 Gb/s ports

One IEEE 1394a header

Expansion capabilities

One primary PCI Express* 2.0 x 16 bus add-in card connector

Two PCI Express 2.0 x 1 connectors

Two PCI Conventional bus connectors
